wpf功能增强库:Microsoft.Xaml.Behaviors.Wpf

wpf功能增强库:Microsoft.Xaml.Behaviors.Wpf


Microsoft.Xaml.Behaviors.Wpf对 WPF 的核心增强点可概括为 3 点:
  1. 突破命令绑定限制:让任意控件的任意事件都能绑定 ViewModel 的命令,符合 MVVM,消除冗余后台代码。

  2. 提供内置实用行为:封装了拖拽、聚焦等常用功能,开箱即用,提升开发效率。

  3. 支持自定义行为封装:将通用 UI 功能抽离为可复用组件,减少重复代码,便于项目维护和扩展。

这个库是 WPF MVVM 开发中的必备工具,尤其在复杂项目中,能大幅提升代码的整洁性和可维护性。



下面举一个例子。

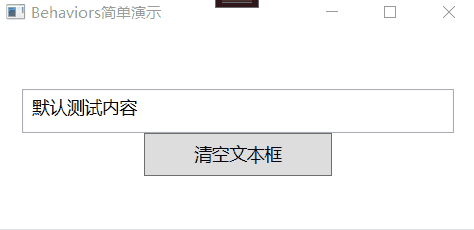

效果为:

  1. 启动程序,文本框显示「默认测试内容」。

  2. 用鼠标点击文本框的任意位置,文字会立即全选且稳定保持(背景高亮,无单独光标出现)。

  3. 此时可以直接输入新内容,会覆盖全选的文字(符合常规全选后的交互逻辑)。

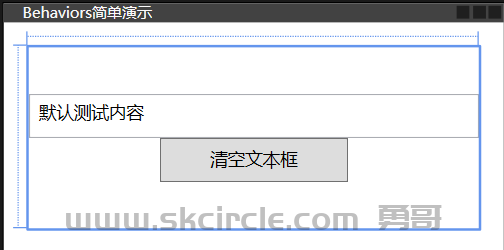

MainWindow.xaml


<Window x:Class="WpfApp1.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp1"
        mc:Ignorable="d"
        xmlns:i="http://schemas.microsoft.com/xaml/behaviors"
        Title="Behaviors简单演示" Height="200" Width="400">
    <Grid Margin="20">
        <!-- 布局:文本框 + 清空按钮 -->
        <StackPanel VerticalAlignment="Center" Margin="0,10,0,10">
            <!-- 文本框:实现「获得焦点时自动全选所有内容」 -->
            <TextBox x:Name="txtInput" Text="默认测试内容" FontSize="14" Height="35" Padding="5">
                <i:Interaction.Triggers>
                    <i:EventTrigger EventName="PreviewMouseDown">
                        <!-- 直接用自定义Action,包含所有逻辑 -->
                        <local:StopEventAndSelectAllAction/>
                    </i:EventTrigger>
                </i:Interaction.Triggers>
            </TextBox>



            <!-- 按钮:实现「点击时清空文本框内容」(这部分代码完全正确,无需修改) -->
            <Button Content="清空文本框" FontSize="14" Height="35" Width="150">
                <!-- 给Button附加Triggers(触发器集合) -->
                <i:Interaction.Triggers>
                    <!-- 事件触发器:绑定Button的Click事件 -->
                    <i:EventTrigger EventName="Click">
                        <!-- 事件触发后执行的动作:修改目标控件的属性(清空TextBox的Text) -->
                        <!-- 目标控件:上面的文本框 -->
                        <i:ChangePropertyAction
                            TargetObject="{Binding ElementName=txtInput}"
                            PropertyName="Text"
                            Value=""/>
                        <!-- 要修改的属性:Text -->
                        <!-- 要设置的属性值:空字符串 -->
                    </i:EventTrigger>
                </i:Interaction.Triggers>
            </Button>
        </StackPanel>
    </Grid>
</Window>

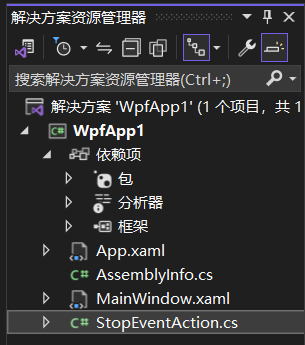

StopEventAction.cs

using Microsoft.Xaml.Behaviors;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;

namespace WpfApp1
{
    /// <summary>
    /// 自定义Action:阻止鼠标事件+给TextBox赋焦+全选文字
    /// </summary>
    // 泛型指定为TextBox,直接关联到TextBox控件(更精准)
    public class StopEventAndSelectAllAction : TriggerAction<TextBox>
    {
        protected override void Invoke(object parameter)
        {
            // 1. 阻止鼠标点击的默认行为(中断事件传递)
            if (parameter is RoutedEventArgs routedEventArgs)
            {
                routedEventArgs.Handled = true;
            }

            // 2. 给当前关联的TextBox赋焦+全选(直接操作控件,无方法调用问题)
            if (this.AssociatedObject != null)
            {
                this.AssociatedObject.Focus(); // 直接调用TextBox的Focus方法
                this.AssociatedObject.SelectAll(); // 直接调用全选方法
            }
        }
    }
}
