WF4.0 基础篇 (十七) Bookmark

本节主要介绍WF4中无返回值Bookmark与有返回值Bookmark,以及Bookmark在parallel,ParallelForEach,ForEach中的使用.



本文例子下载:

http://files.cnblogs.com/foundation/BookmarkSample.rar

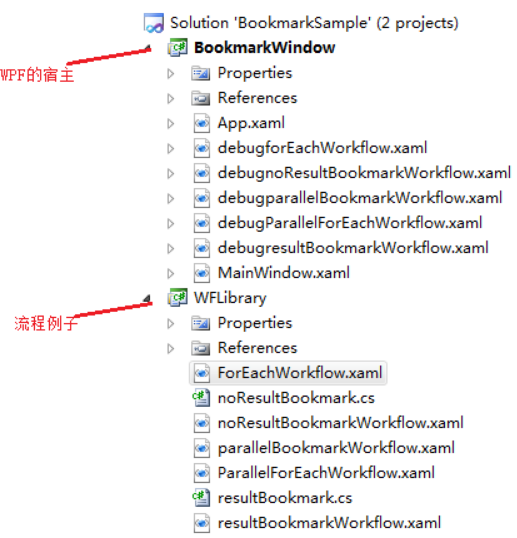

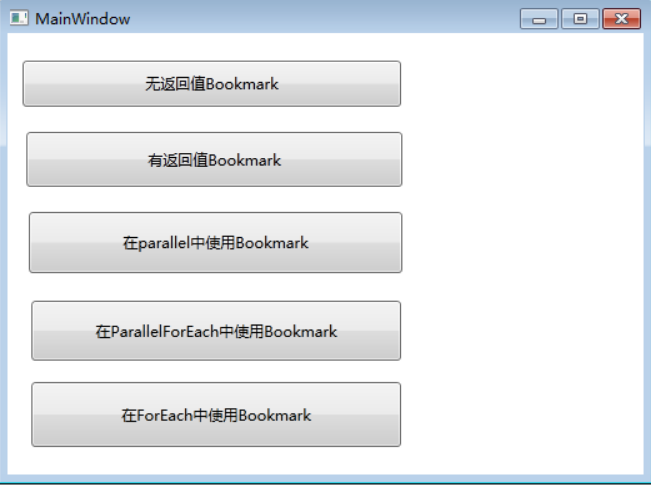

本文例子说明




Bookmark


Bookmark可使用流程Idle并触发实例的OnIdle



无返回值Bookmark

要定义具备Bookmark的Activit,可从 NativeActivity继承,override [Execute 方法],使用[NativeActivityContext.CreateBookmark方法]添加Bookmark

需要override [ CanInduceIdle 属性],使其返回值为[True]

可用[实例.ResumeBookmark方法]触发Bookmark

public sealed class noResultBookmark : NativeActivity

{

public InArgument<string> bookmarkName { getset; }

protected override bool CanInduceIdle

{

get

return true; }

}

protected override void Execute(NativeActivityContext context)

{

string bookmark = context.GetValue(bookmarkName);

context.CreateBookmark(bookmark);

System.Console.WriteLine("创建bookmark:{0}", bookmark);

}

}

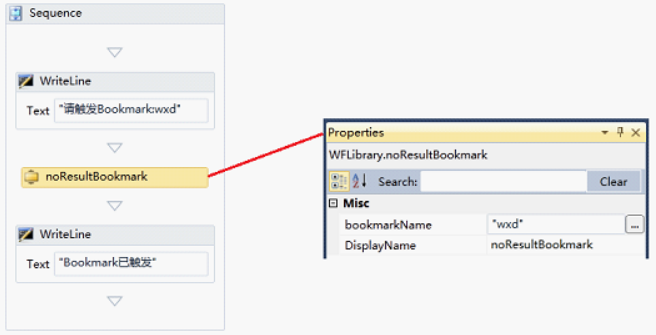

例:基本使用

流程


宿主



//===================================================

void workflowCompleted(WorkflowApplicationCompletedEventArgs e)

{

instance = null;

System.Console.WriteLine("workflowCompleted:{0}", e.CompletionState.ToString());

}



void aborted(WorkflowApplicationAbortedEventArgs e)

{

instance = null;

System.Console.WriteLine("aborted ,Reason:{0}", e.Reason.Message);

}



UnhandledExceptionAction unhandledExceptionl(WorkflowApplicationUnhandledExceptionEventArgs e)

{

System.Console.WriteLine("unhandledException:{0}", e.UnhandledException.Message);

return UnhandledExceptionAction.Cancel;

}

void workflowIdel(WorkflowApplicationIdleEventArgs e)

{

System.Console.WriteLine("Idle:{0}", e.InstanceId);



System.Console.WriteLine("--------BookmarkName---------------------------");

foreach (var item in e.Bookmarks)

{

System.Console.WriteLine("{0}", item.BookmarkName);

}

System.Console.WriteLine("================================");

}

//==================================================



WorkflowApplication instance = null;



private void button_Run_Click(object sender, RoutedEventArgs e)

{

instance = new WorkflowApplication(new WFLibrary.noResultBookmarkWorkflow());



instance.Completed = new Action<WorkflowApplicationCompletedEventArgs>(workflowCompleted);

instance.OnUnhandledException = unhandledExceptionl;

instance.Aborted = aborted;

instance.Idle = workflowIdel;

instance.Run();



}



private void button_triggering_Click(object sender, RoutedEventArgs e)

{

string bookName = textBoxBookmark.Text;



if (instance != null)

{

if (instance.GetBookmarks().Count(p => p.BookmarkName == bookName) == 1)

{

instance.ResumeBookmark(bookName, null);

}

else

{

foreach (var v in instance.GetBookmarks())

{

System.Console.WriteLine("--------请从下面选项中选择一BookmarkName---------------------------");

System.Console.WriteLine("BookmarkName:{0}:,OwnerDisplayName:{1}", v.BookmarkName, v.OwnerDisplayName);

System.Console.WriteLine("================================");

}

}

}

else

{

MessageBox.Show("没有创ä建实例");

}

}

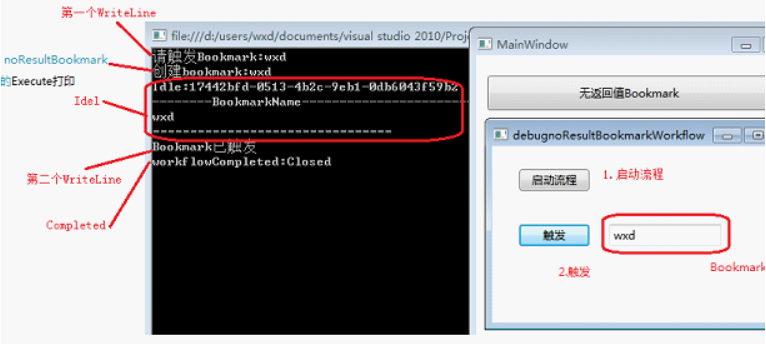

结果




有返回值Bookmark

要定义具备Bookmark的Activit,可从 NativeActivity<T> 继承,override [Execute 方法],使用[NativeActivityContext.CreateBookmark方法]添加Bookmark

需要override [ CanInduceIdle 属性],使其返回值为[True]

可用[实例.ResumeBookmark方法]触发Bookmark

public sealed class resultBookmark<T> : NativeActivity<T>

{

public InArgument<string> bookmarkName { getset; }



protected override bool CanInduceIdle

{

get

return true; }

}

protected override void Execute(NativeActivityContext context)

{

string bookmark = context.GetValue(bookmarkName);

context.CreateBookmark(bookmark,new BookmarkCallback(bookmarkCallback));

System.Console.WriteLine("创建bookmark:{0}", bookmark);

}

void bookmarkCallback(NativeActivityContext context, Bookmark bookmark, object obj)

{

this.Result.Set(context, (T)obj);

}

}



例:基本使用

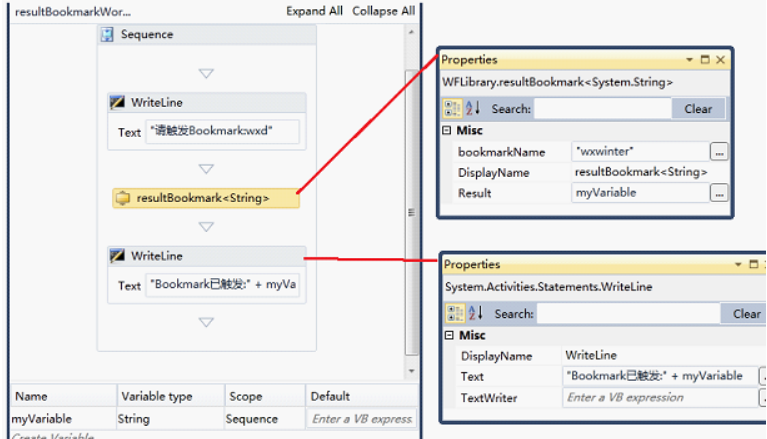

流程


宿主



//===================================================

void workflowCompleted(WorkflowApplicationCompletedEventArgs e)

{

instance = null;

System.Console.WriteLine("workflowCompleted:{0}", e.CompletionState.ToString());

}



void aborted(WorkflowApplicationAbortedEventArgs e)

{

instance = null;

System.Console.WriteLine("aborted ,Reason:{0}", e.Reason.Message);

}



UnhandledExceptionAction unhandledExceptionl(WorkflowApplicationUnhandledExceptionEventArgs e)

{

System.Console.WriteLine("unhandledException:{0}", e.UnhandledException.Message);

return UnhandledExceptionAction.Cancel;

}

void workflowIdel(WorkflowApplicationIdleEventArgs e)

{

System.Console.WriteLine("Idle:{0}", e.InstanceId);



System.Console.WriteLine("--------BookmarkName---------------------------");

foreach (var item in e.Bookmarks)

{

System.Console.WriteLine("{0}", item.BookmarkName);

}

System.Console.WriteLine("================================");

}

//==================================================



WorkflowApplication instance = null;



private void button_Run_Click(object sender, RoutedEventArgs e)

{

instance = new WorkflowApplication(new WFLibrary.resultBookmarkWorkflow());



instance.Completed = new Action<WorkflowApplicationCompletedEventArgs>(workflowCompleted);

instance.OnUnhandledException = unhandledExceptionl;

instance.Aborted = aborted;

instance.Idle = workflowIdel;

instance.Run();



}



private void button_triggering_Click(object sender, RoutedEventArgs e)

{

string bookName = textBoxBookmark.Text;

string inputValue = textBox_Value.Text;



if (instance != null)

{

if (instance.GetBookmarks().Count(p => p.BookmarkName == bookName) == 1)

{

instance.ResumeBookmark(bookName,inputValue );

}

else

{

foreach (var v in instance.GetBookmarks())

{

System.Console.WriteLine("--------请从下面选项中选择一BookmarkName---------------------------");

System.Console.WriteLine("BookmarkName:{0}:,OwnerDisplayName:{1}", v.BookmarkName, v.OwnerDisplayName);

System.Console.WriteLine("================================");

}

}

}

else

{

MessageBox.Show("没有创建实例");

}

}

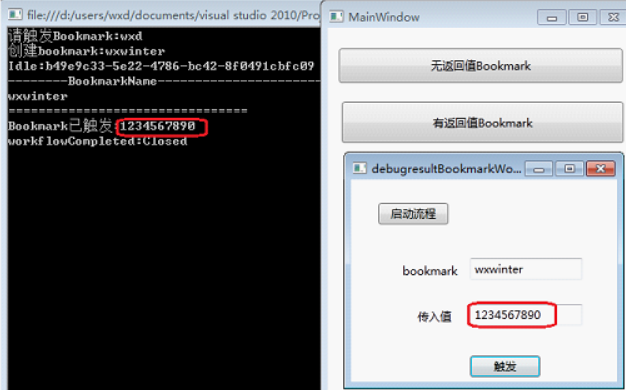

结果

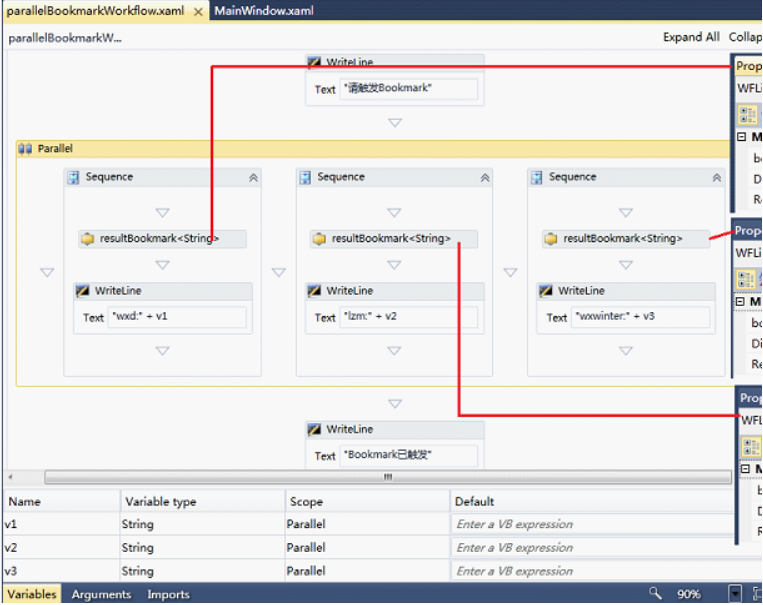

例:在parallel中使用Bookmark

流程


宿主



//===================================================

void workflowCompleted(WorkflowApplicationCompletedEventArgs e)

{

instance = null;

System.Console.WriteLine("workflowCompleted:{0}", e.CompletionState.ToString());

}



void aborted(WorkflowApplicationAbortedEventArgs e)

{

instance = null;

System.Console.WriteLine("aborted ,Reason:{0}", e.Reason.Message);

}



UnhandledExceptionAction unhandledExceptionl(WorkflowApplicationUnhandledExceptionEventArgs e)

{

System.Console.WriteLine("unhandledException:{0}", e.UnhandledException.Message);

return UnhandledExceptionAction.Cancel;

}

void workflowIdel(WorkflowApplicationIdleEventArgs e)

{

System.Console.WriteLine("Idle:{0}", e.InstanceId);



System.Console.WriteLine("--------BookmarkName---------------------------");

foreach (var item in e.Bookmarks)

{

System.Console.WriteLine("{0}", item.BookmarkName);

}

System.Console.WriteLine("================================");

}

//==================================================



WorkflowApplication instance = null;



private void button_Run_Click(object sender, RoutedEventArgs e)

{

instance = new WorkflowApplication(new WFLibrary.parallelBookmarkWorkflow());



instance.Completed = new Action<WorkflowApplicationCompletedEventArgs>(workflowCompleted);

instance.OnUnhandledException = unhandledExceptionl;

instance.Aborted = aborted;

instance.Idle = workflowIdel;

instance.Run();



}



private void button_triggering_Click(object sender, RoutedEventArgs e)

{

string bookName = textBoxBookmark.Text;

string inputValue = textBox_Value.Text;



if (instance != null)

{

if (instance.GetBookmarks().Count(p => p.BookmarkName == bookName) == 1)

{

instance.ResumeBookmark(bookName,inputValue );

}

else

{

foreach (var v in instance.GetBookmarks())

{

System.Console.WriteLine("--------请从下面选项中选择一BookmarkName---------------------------");

System.Console.WriteLine("BookmarkName:{0}:,OwnerDisplayName:{1}", v.BookmarkName, v.OwnerDisplayName);

System.Console.WriteLine("================================");

}

}

}

else

{

MessageBox.Show("没有创建实例");

}

}

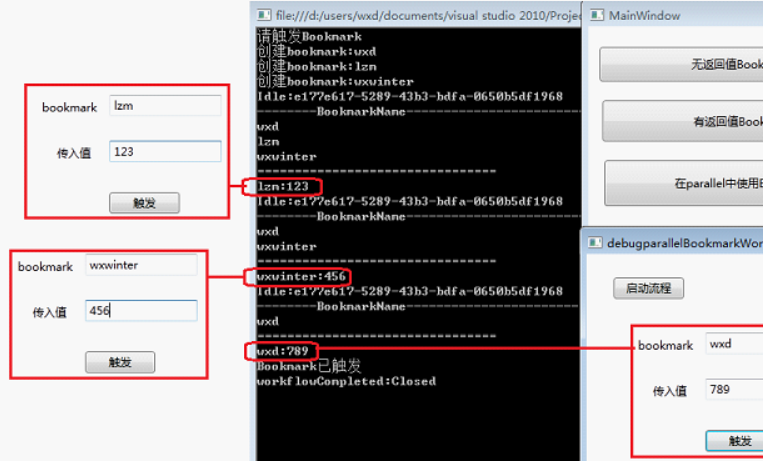

结果

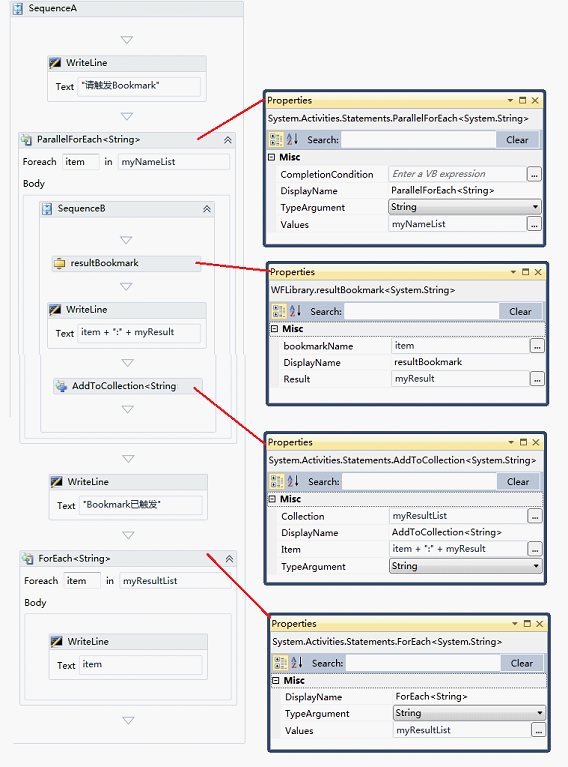

例:在ParallelForEach中使用Bookmark

流程

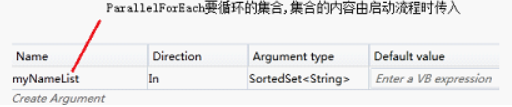

参数




变量




流程


宿主



//===================================================

void workflowCompleted(WorkflowApplicationCompletedEventArgs e)

{

instance = null;

System.Console.WriteLine("workflowCompleted:{0}", e.CompletionState.ToString());

}



void aborted(WorkflowApplicationAbortedEventArgs e)

{

instance = null;

System.Console.WriteLine("aborted ,Reason:{0}", e.Reason.Message);

}



UnhandledExceptionAction unhandledExceptionl(WorkflowApplicationUnhandledExceptionEventArgs e)

{

System.Console.WriteLine("unhandledException:{0}", e.UnhandledException.Message);

return UnhandledExceptionAction.Cancel;

}

void workflowIdel(WorkflowApplicationIdleEventArgs e)

{

System.Console.WriteLine("Idle:{0}", e.InstanceId);



System.Console.WriteLine("--------BookmarkName---------------------------");

foreach (var item in e.Bookmarks)

{

System.Console.WriteLine("{0}", item.BookmarkName);

}

System.Console.WriteLine("================================");

}

//==================================================



WorkflowApplication instance = null;



private void button_Run_Click(object sender, RoutedEventArgs e)

{



System.Collections.Generic.SortedSet<string> nameList = new SortedSet<string>();

nameList.Add("wxd");

nameList.Add("wxwinter");

nameList.Add("lzm");

nameList.Add("dd");

System.Collections.Generic.Dictionary<stringobject> dictionary = new Dictionary<stringobject>();

dictionary.Add("myNameList", nameList);



instance = new WorkflowApplication(new WFLibrary.ParallelForEachWorkflow(), dictionary);



instance.Completed = new Action<WorkflowApplicationCompletedEventArgs>(workflowCompleted);

instance.OnUnhandledException = unhandledExceptionl;

instance.Aborted = aborted;

instance.Idle = workflowIdel;

instance.Run();



}



private void button_triggering_Click(object sender, RoutedEventArgs e)

{

string bookName = textBoxBookmark.Text;

string inputValue = textBox_Value.Text;



if (instance != null)

{

if (instance.GetBookmarks().Count(p => p.BookmarkName == bookName) == 1)

{

instance.ResumeBookmark(bookName,inputValue );

}

else

{

foreach (var v in instance.GetBookmarks())

{

System.Console.WriteLine("--------请从下面选项中选择一BookmarkName---------------------------");

System.Console.WriteLine("BookmarkName:{0}:,OwnerDisplayName:{1}", v.BookmarkName, v.OwnerDisplayName);

System.Console.WriteLine("================================");

}

}

}

else

{

MessageBox.Show("没有创建实例");

}

}

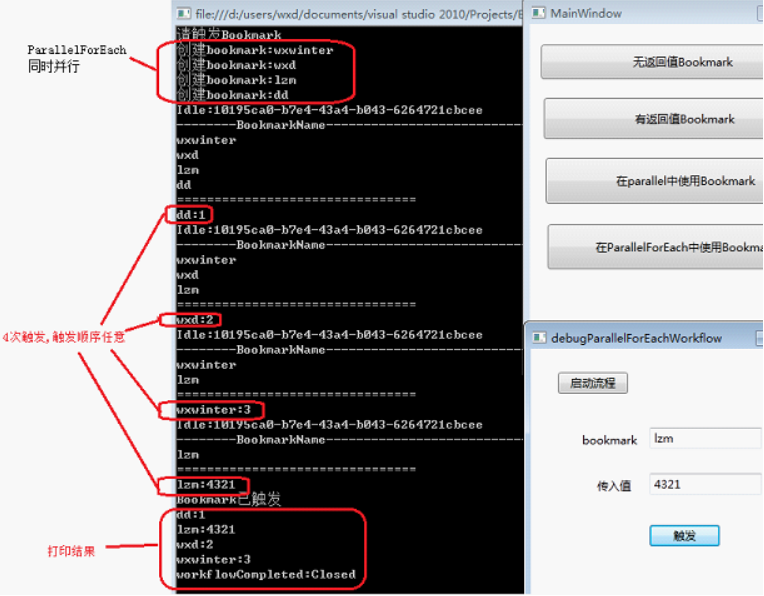

结果

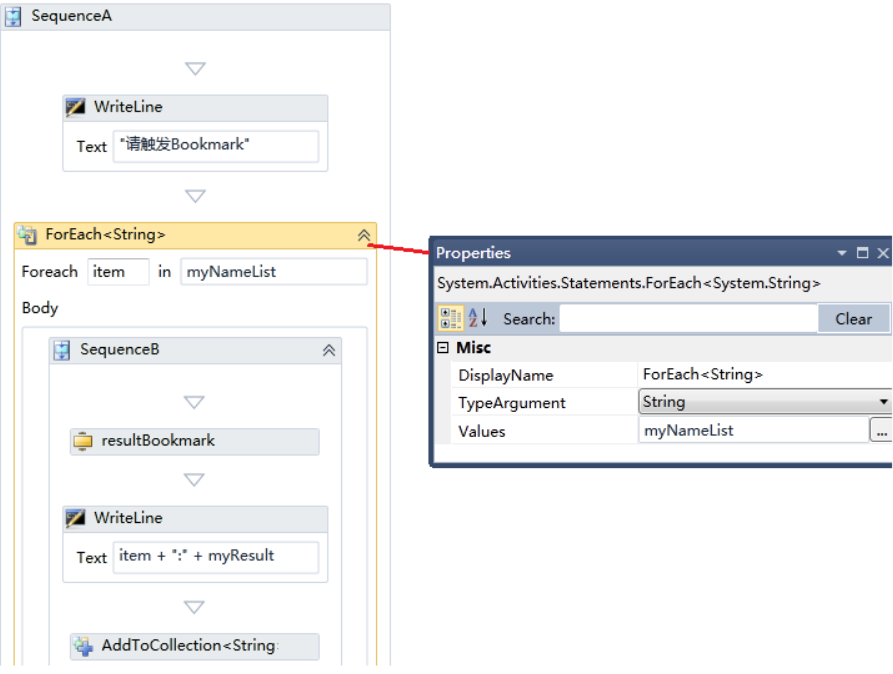

例:在ForEach中使用Bookmark

将[在ParallelForEach中使用Bookmark]中的ParallelForEach换成ForEach

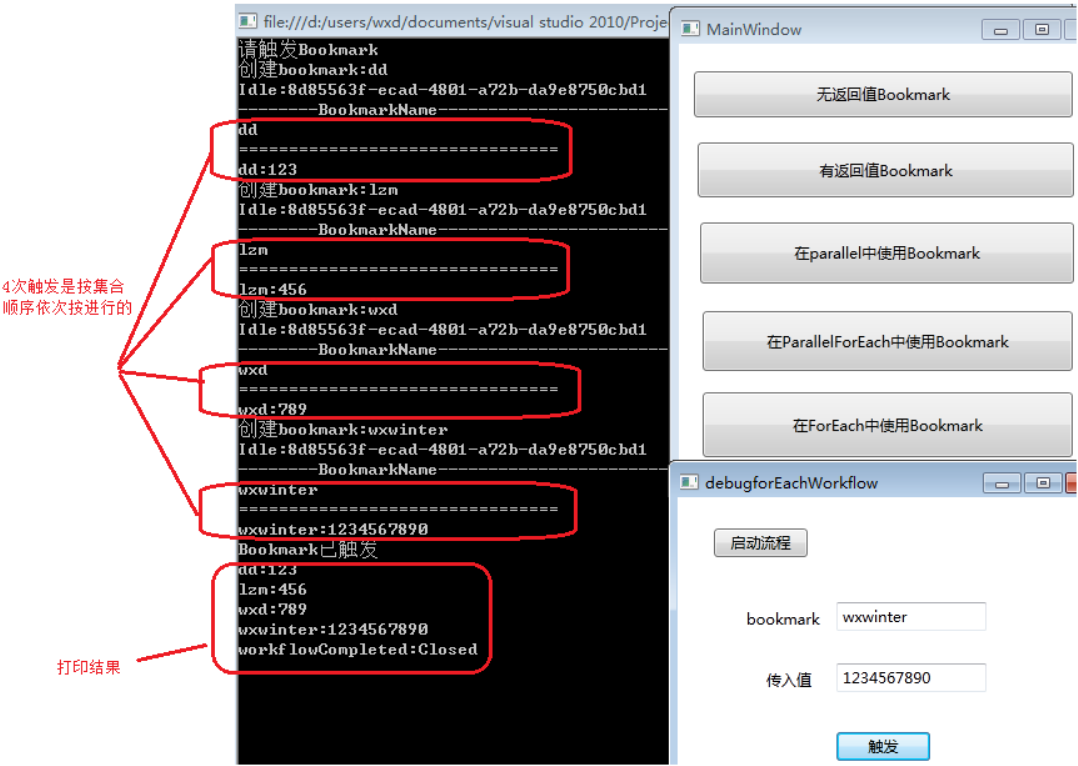

结果
