控件和对象双向数据绑定
实现结果:
1. 对象值 -> 控件值
2. 控件值 -> 对象值
演示代码:
using System; using System.Collections.Generic; using System.ComponentModel; using System.Data; using System.Drawing; using System.Linq; using System.Text; using System.Threading.Tasks; using System.Windows.Forms; namespace 控件与对象的双向绑定 { public partial class Form1 : Form { UserInfo user = new UserInfo(); public Form1() { InitializeComponent(); user.UserName = "勇哥"; user.Id = 1; //user.PropertyChanged += User_PropertyChanged; } public void MyMethod(string paramName = nameof(MyMethod)) { Console.WriteLine($"The name of the parameter is: {paramName}"); } private void button1_Click(object sender, EventArgs e) { } private void timer1_Tick(object sender, EventArgs e) { //LabUserName.Text = user.UserName; //LabID.Text = user.Id.ToString(); } private void label4_Click(object sender, EventArgs e) { } int js1 = 0; private void button2_Click(object sender, EventArgs e) { user.UserName = $"刘备{++js1}"; user.Id = 1+js1; } MyClass mycls = new MyClass(); private void Form1_Load(object sender, EventArgs e) { BindingSource source = new BindingSource(); source.DataSource = mycls; this.trackBar1.DataBindings.Add("Value", source, "Value1", true, DataSourceUpdateMode.OnPropertyChanged); this.textBox1.DataBindings.Add("Text", source, "Value1", true, DataSourceUpdateMode.OnPropertyChanged); this.LabValue.DataBindings.Add("Text", source, "Value1", true, DataSourceUpdateMode.OnPropertyChanged); BindingSource source2 = new BindingSource(); source2.DataSource = user; TxtUserName.DataBindings.Add("Text", source2, "UserName", true, DataSourceUpdateMode.OnPropertyChanged); TxtId.DataBindings.Add("Text", source2, "Id", true, DataSourceUpdateMode.OnPropertyChanged); LabUserName.DataBindings.Add("Text", source2, "UserName", true, DataSourceUpdateMode.OnPropertyChanged); LabID.DataBindings.Add("Text", source2, "Id", true, DataSourceUpdateMode.OnPropertyChanged); } public class MyClass { public int Value1 { get; set; } } public class UserInfo : INotifyPropertyChanged { private string userName; private int id; public event PropertyChangedEventHandler PropertyChanged; public string UserName { get { return userName; } set { userName = value; PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(userName)); } } public int Id { get { return id; } set { id = value; PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(id.ToString())); } } } } }
几点说明:
(1)对控件的修改可以实时反馈到类对象上。但当我们修改类对象属性时,控件在这时不会更改,如果想要类属性修改是可以实时反馈到控件上,我们需要实现 INotifyPropertyChanged接口。
(2) DataBindings.Add方法有6个重载。分别是:属性名、数据源、数据成员、格式化使能、数据源更新模式、数据源为空时的默认值。因此,我们可以这样写:
private void Form1_Load(object sender, EventArgs e) { BindingSource source = new BindingSource(); source.DataSource = this.trackBar1; this.textBox1.DataBindings.Add("Text", source, "Value"); this.label1.DataBindings.Add("Text", source, "Value"); }
(3)数据源更新模式有三种

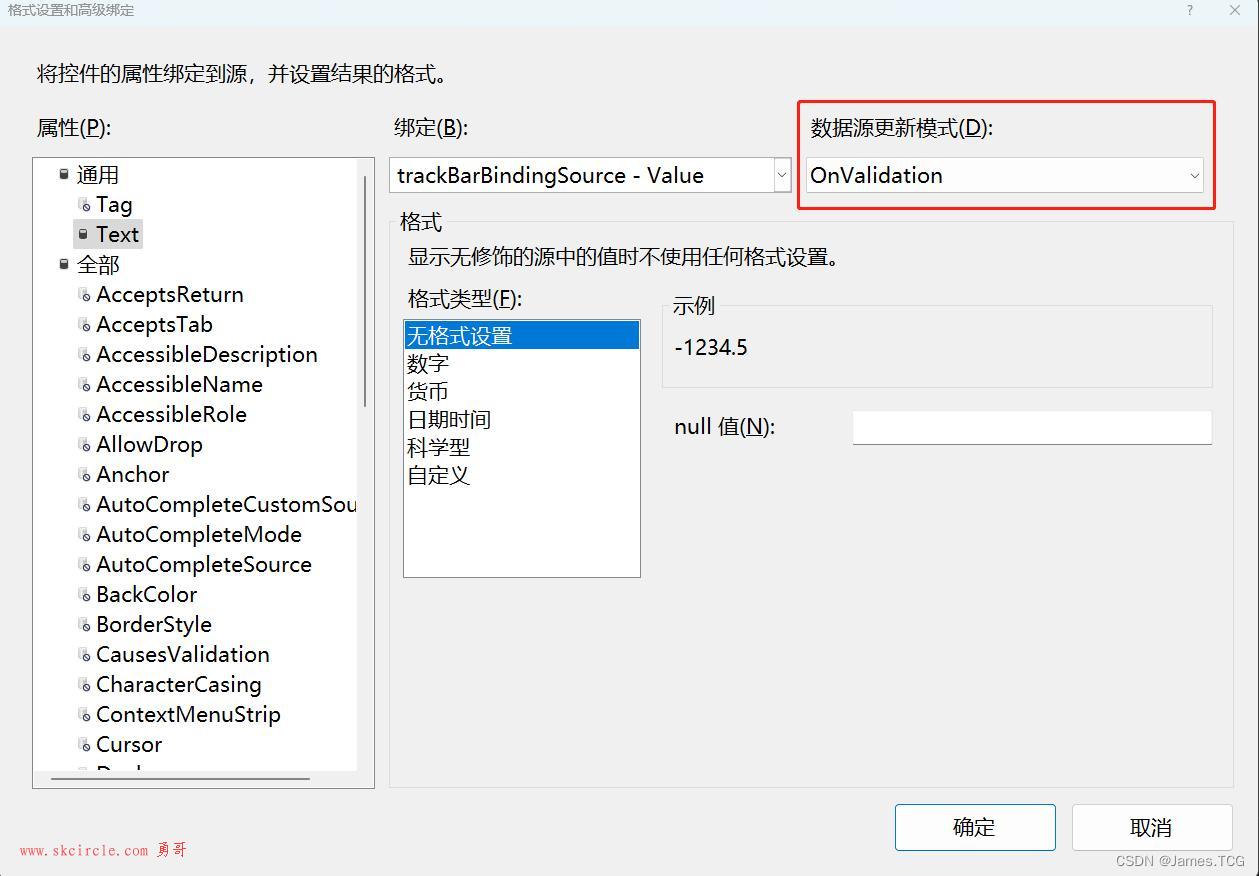

1。OnValidation 验证时更新数据源

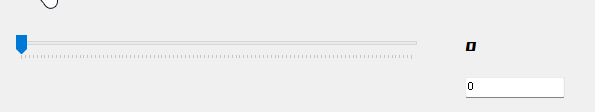

验证时更新数据源,在textbox控件失去焦点时,触发Onvalidation事件,继而更改TrackBar控件value属性。默认模式

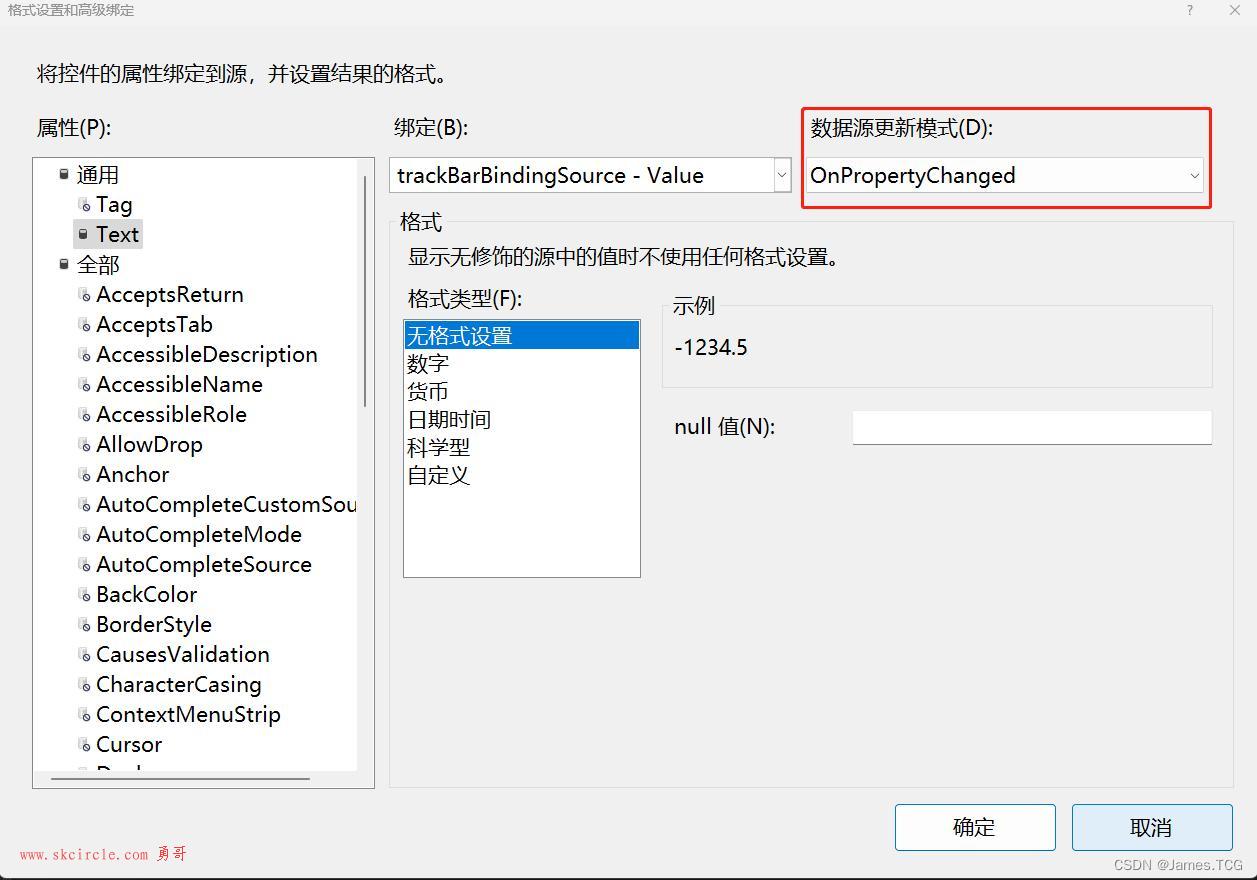

2。OnPropertyChanged 立即更新数据源

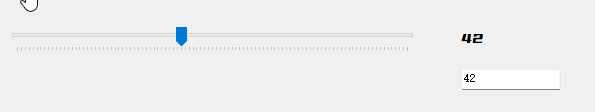

在我修改textbox控件值时,会立即修改TrackBar控件value值

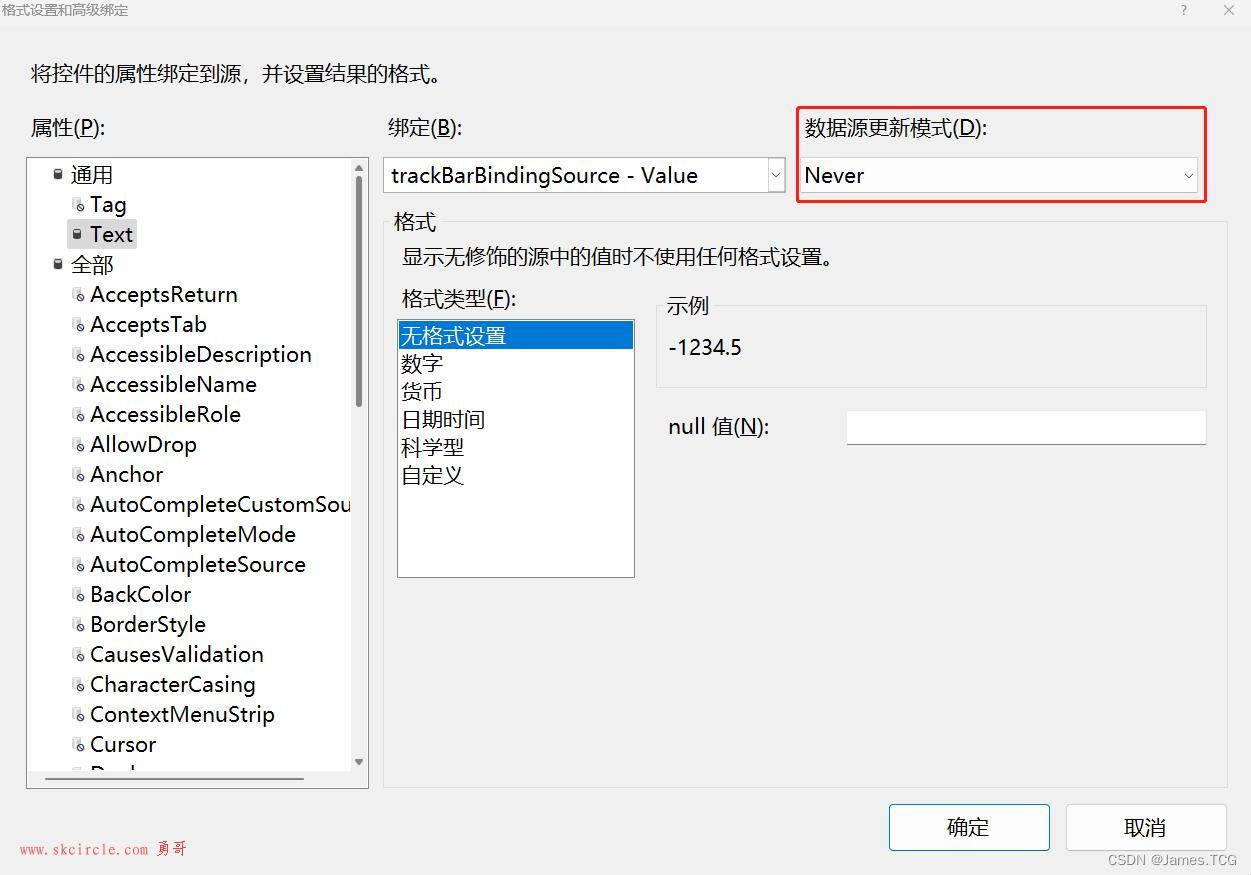

3。Never 单向绑定

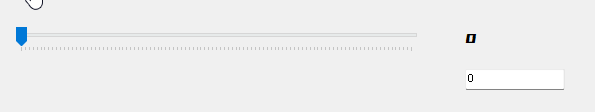

修改Textbox值时,TrackBar控件value属性不会更改。
---------------------
