少有人走的路inspect_bottle_mouth.hdev
* tuning parameters
SmoothX := 501
ThresholdOffset := 25
MinDefectSize := 50
*
* initialization
PolarResolution := 640
RingSize := 70
get_system ('store_empty_region', StoreEmptyRegion)
set_system ('store_empty_region', 'false')
read_image (Image, 'bottles/bottle_mouth_01')
dev_update_off ()
dev_close_window ()
dev_close_window ()
dev_open_window_fit_image (Image, 0, 0, 640, 512, WindowHandle1)
set_display_font (WindowHandle1, 16, 'mono', 'true', 'false')
dev_display (Image)
dev_set_draw ('margin')
dev_set_line_width (3)
dev_open_window_fit_size (0, 648, RingSize, PolarResolution, 150, 512, WindowHandle)
dev_set_draw ('margin')
dev_set_line_width (3)
dev_set_color ('red')
*
* Main loop
*
* Detect defects in bottle necks
for Index := 1 to 16 by 1
read_image (Image, 'bottles/bottle_mouth_' + Index$'.02')
*
* Part 1: Use basic morphology to detect bottle
*自动阈值分割图像
auto_threshold (Image, Regions, 2)
*选择第一的区域，没明白
select_obj (Regions, DarkRegion, 1)
*用3.5的圆做开运算（先腐蚀后膨胀），消除小物体
opening_circle (DarkRegion, RegionOpening, 3.5)
*用25.5的圆做闭运算（先膨胀后腐蚀），排除小型黑洞，可以把里面的小圆滤除掉，只保留大圆
closing_circle (RegionOpening, RegionClosing, 25.5)
*填补区域的漏洞，让区域更完整
fill_up (RegionClosing, RegionFillUp)
*向外扩散一个区域后，计算区域内的轮廓，（计算轮廓啥意思？）
boundary (RegionFillUp, RegionBorder, 'outer')
*内外各以3.5的像素扩大区域
dilation_circle (RegionBorder, RegionDilation, 3.5)
*选择了上面扩大后的区域，提取这个区域（不是裁剪）
reduce_domain (Image, RegionDilation, ImageReduced)
*
* Find the bottle center by fitting a circle to extracted edges
*使用累计直方图计算两个阀值。凡是大于高阀值的一定是边缘； 凡是小于低阀值的一定不是边缘；
*如果检测结果大于低阀值但又小于高阀值，那就要看这个像素的邻接像素中有没有超过高阀值的边缘像素：如果有的话那么它就是边缘了，否则他就不是边缘；
*但我仍然有疑惑
edges_sub_pix (ImageReduced, Edges, 'canny', 0.5,20, 40)
*利用直线和圆去分割原有的轮廓，导致更容易拟合
segment_contours_xld (Edges, ContoursSplit, 'lines_circles', 5, 4, 2)
*利用上面分割的结果，用直线或者圆弧拟合轮廓
union_cocircular_contours_xld (ContoursSplit, UnionContours, 0.9, 0.5, 0.5, 200, 50, 50, 'true', 1)
length_xld (UnionContours, Length)
select_obj (UnionContours, LongestContour, sort_index(Length)[|Length| - 1] + 1)
*用一个完整圆拟合上面那个轮廓，返回圆心坐标和半径
fit_circle_contour_xld (LongestContour, 'ahuber', -1, 0, 0, 3, 2, Row, Column, Radius, StartPhi, EndPhi, PointOrder)
*
* Part 2: Transform the ring-shaped bottle neck region to a rectangle
*根据圆心坐标和半径产生一个圆
gen_circle (Circle, Row, Column, Radius)
*向外以5的像素扩大区域
dilation_circle (Circle, RegionDilation, 5)
*向内以（70-5=65）的像素扩大区域
erosion_circle (Circle, RegionErosion, RingSize - 5)
*得到一个圆环，两个圆之间的区域
difference (RegionDilation, RegionErosion, RegionDifference)
*提取上面的圆环区域（不是裁剪）
reduce_domain (Image, RegionDifference, ImageReduced)
*极坐标变换算子，圆形图变方形图
*参数（输入图像，输出图像，圆心横坐标，圆心纵坐标
*，要映射到输出图像第一列的射线角度，要映射到输出图像最后一列的射线角度
*，要映射到输出图像第一行的圆的半径，要映射到输出图像最后一行的圆的半径
*，输出图的宽，输出图的高，类插值方法）
polar_trans_image_ext (ImageReduced, ImagePolar, Row, Column, 0, rad(360), Radius - RingSize, Radius, PolarResolution, RingSize, 'nearest_neighbor')
*
* Part 3: Find defects with a dynamic threshold
* Note the strong smoothing in x-direction in the transformed image.
*将图像中像素最小和最大之间的像素值均匀映射到0-255之间，增强对比度。
scale_image_max (ImagePolar, ImageScaleMax)
*均值滤波
mean_image (ImageScaleMax, ImageMean, SmoothX, 3)
*动态阈值分割
dyn_threshold (ImageScaleMax, ImageMean, Regions1, 55, 'not_equal')
*将分割后的各区域分隔开
connection (Regions1, Connection)
*根据高度选择9个像素以上的区域
select_shape (Connection, SelectedRegions, 'height', 'and', 9, 99999)
* ignore noise regions
*封闭的矩形框，边界被平滑
closing_rectangle1 (SelectedRegions, RegionClosing1, 10, 20)
union1 (RegionClosing1, RegionUnion)
* re-transform defect regions for visualization
*极坐标反变换
polar_trans_region_inv (RegionUnion, XYTransRegion, Row, Column, 0, rad(360), Radius - RingSize, Radius, PolarResolution, RingSize, 1280, 1024, 'nearest_neighbor')
*
* Part 4: Display results

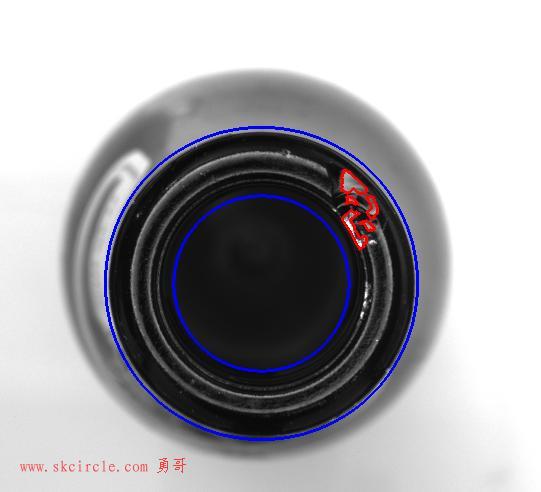

* display original image with results
dev_set_window (WindowHandle1)
dev_display (Image)
dev_set_color ('blue')
dev_display (RegionDifference)
dev_set_color ('red')
dev_display (XYTransRegion)
* display polar transformed inspected region with results
* The image and resulting region are rotated by 90 degrees
* only for visualization purposes! (I.e. to fit better on the screen)
* The rotation is NOT necessary for the detection algorithm.
dev_set_window (WindowHandle)
rotate_image (ImagePolar, ImageRotate, 90, 'constant')
dev_display (ImageRotate)
count_obj (RegionUnion, Number)
if (Number > 0)
mirror_region (RegionUnion, RegionMirror, 'diagonal', PolarResolution)
mirror_region (RegionMirror, RegionMirror, 'row', PolarResolution)
dev_display (RegionMirror)
disp_message (WindowHandle1, 'Not OK', 'window', -1, -1, 'red', 'false')
else
disp_message (WindowHandle1, 'OK', 'window', -1, -1, 'forest green', 'false')
endif
if (Index < 16)
disp_continue_message (WindowHandle1, 'black', 'true')
stop ()
endif
endfor
* Reset system parameters
set_system ('store_empty_region', StoreEmptyRegion)
